Vacuum chip extraction system

Vacuum chip extraction system from KÖBO>ECO Process GmbH

The vacuum chip extraction system enables the separation of chips from several processing machines, even in confined spaces.

Both the vacuum blower and the chip separator are positioned in a central, easily accessible location and the chips are alternately extracted from the processing machines via a piping system.

The separated chips are removed from the chip separator and the cleaned exhaust air is discharged to the outside.

Structure
  • Vacuum blower
  • Chip separator with cycle lock and sintered metal filter
  • Chip diverter

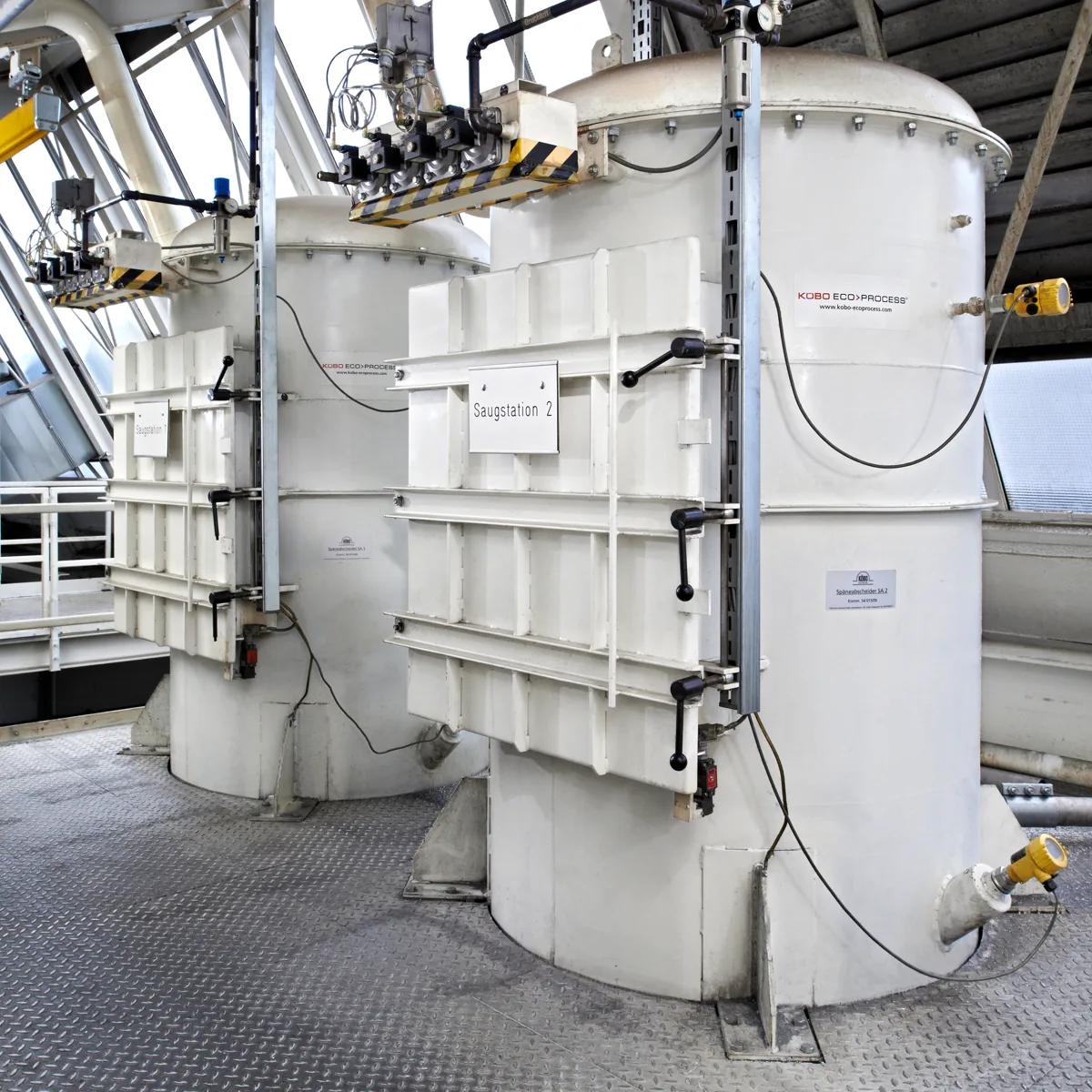

  • Suction station
  • Transport of chips by means of vacuum conveying through pipelines:
  • A fan generates negative pressure at a central collection point
  • The blower is connected to a suction line via a separator filter
  • chips are extracted from the individual processing machines to the central collection point via the connecting piping system
  • the chips are separated in the chip separator without interrupting the vacuum via an intermittent rotary valve or rotary valve
  • Sintered metal filters inside the chip separator clean the suction air of dust
  • Several chip separators can be approached via upstream chip diverters
  • Transportation of free-flowing chips or free-flowing materials of all kinds
  • Complex system with limited space
  • Extraction of short chips from the:
  • - Dry processing
  • - Machining with minimum lubrication
  • Central chip extraction for several machines
  • High flexibility thanks to customizable pipe runs
  • Low space requirement / can also be used in very confined spaces
  • Expandable
  • Conveyed material: free-flowing short chips
  • Length [m]: individual
  • Typical negative pressure: approx. 500 mbar
